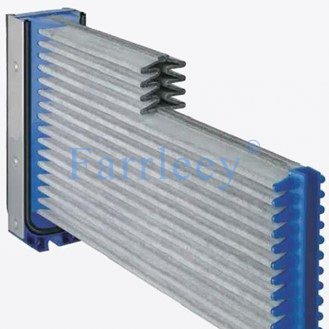

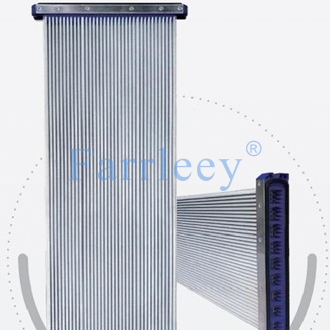

PANEL FILTER CARTRIDGE

PRODUCTS

Panel filter cartridges provide practical, reliable air filtration for dust collection, ventilation and equipment protection applications. Their framed construction provides dimensional stability and dependable sealing, while the selected filter media can be configured according to airflow, dust loading and operating conditions.

Under your brand

Your label, your part number, your packaging

Not sold to end users

We supply filter manufacturers and their channels only

NDA supported

Your drawings and specifications stay yours

When this makes sense for you

Equipment Protection

Suitable for applications where incoming air needs to be filtered before reaching downstream equipment or processes.

High-Dust Environments

A suitable media and panel configuration can provide dependable particle capture in dusty industrial environments.

Ventilation & Air Handling

Useful for ventilation and air-handling systems requiring consistent particulate filtration.

Retrofit Applications

Panel dimensions and frame configurations can be matched to existing equipment where replacement compatibility is required.

Customisation capability

Capability	Typical Options	Application Benefit
Filter Media	Synthetic, polyester, cellulose, specialty media	Application-specific filtration
Frame Material	Galvanized, aluminum, stainless steel	Structural and environmental compatibility
Face Configuration	Standard / reinforced	Application-specific support
Media Depth	Application-specific	Balances filtration area and airflow
Seal	Foam / gasket / application-specific	Helps reduce air bypass
Face Screen	Protective mesh / support screen	Improved media support
Dimensions	Custom length & width	Equipment compatibility
Configuration	Customer-specific	Retrofit and OEM requirements

Standard size range

Parameter	Typical Configuration	Notes
Panel Width	Application-specific	Based on equipment opening
Panel Height	Application-specific	Matched to housing
Filter Depth	Multiple configurations	Selected according to airflow and loading
Frame	Multiple material options	Based on environment
Media	Application-specific	Selected according to dust characteristics
Sealing	Multiple options	Helps minimize bypass

Why manufacturers use us

Reliable Air Filtration

Designed to provide consistent particulate filtration for industrial air-handling and dust-control applications.

Strong Panel Construction

The framed design supports media stability and helps maintain the filter shape during operation.

Easy Equipment Integration

Custom dimensions and frame configurations can be developed for replacement and OEM applications.

Application-Specific Selection

Media, frame, sealing and support options can be selected according to the operating environment.

Media you can specify

Synthetic Filter Media

Suitable for general industrial air filtration and applications requiring a durable media structure.

Polyester Media

Provides a robust option for industrial dust and particulate filtration.

Cellulose-Based Media

Can be considered for suitable dry-dust applications where the required filtration characteristics match the operating conditions.

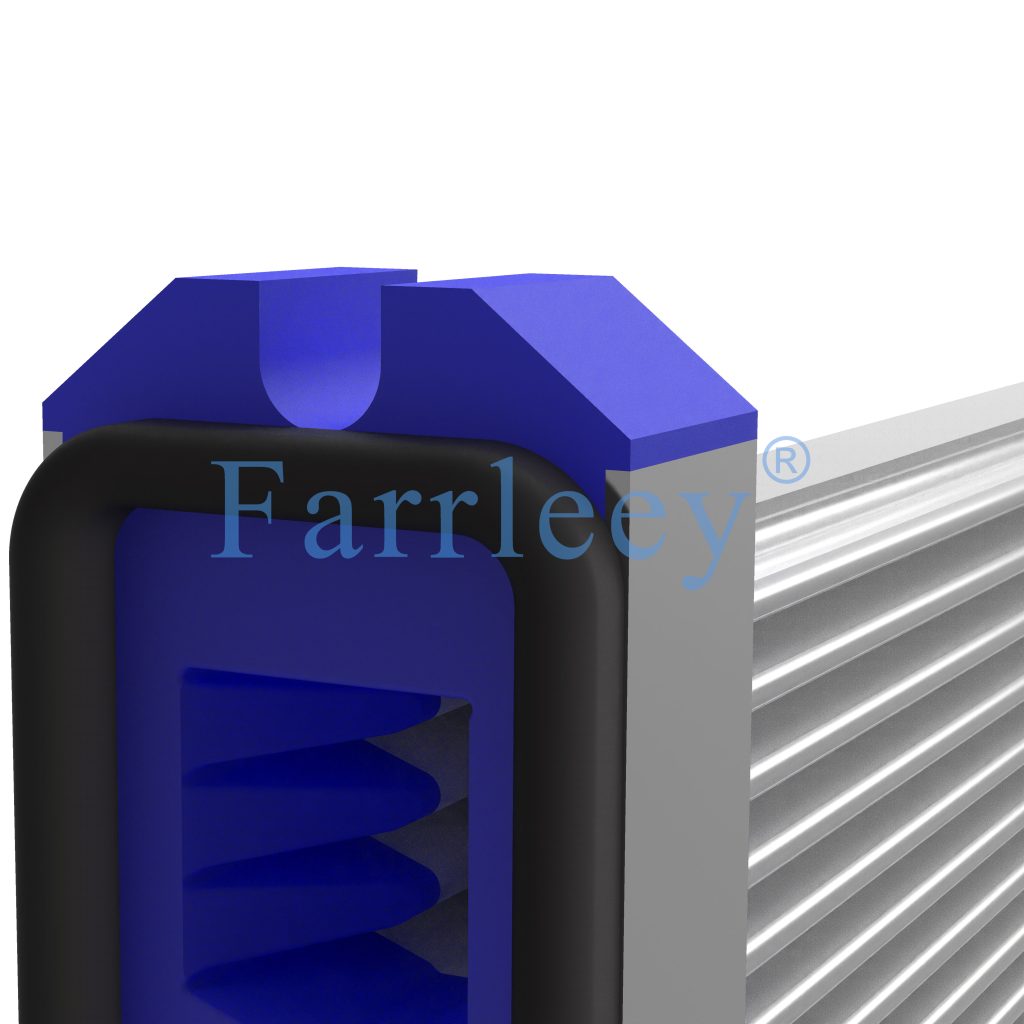

End caps, gaskets and support

Rigid Frame Options

Frames can be configured using suitable materials according to installation and environmental requirements.

Sealing Options

Appropriate gasket or sealing configurations help minimize bypass around the filter perimeter.

Protective Face Support

Face screens or support structures can be incorporated where additional media protection is required.

Application-Specific Construction

Frame, media and support details can be adapted to the existing filtration system.

Temperature classes

Operating Condition	Recommended Consideration	Application Focus
General Air Filtration	Standard media configuration	Routine particulate removal
High Dust Loading	Higher-capacity media	Longer operating intervals
Moisture Exposure	Moisture-resistant option	Damp operating environments
Static-Sensitive Area	Antistatic option	Static-control requirements
Fine Particle Filtration	Suitable fine-filtration media	Increased particle capture
Demanding Environment	Specialty construction	Application-specific requirements

How a custom order runs

Requirement

Drawing / sample

Media selection

Prototype

Testing

Production

Each Panel Filter Cartridge is checked for overall dimensions, frame condition, media placement, sealing quality, structural integrity and general workmanship before dispatch.

Drawings and files

Cartridge specification template

PDF

Typical applications

Frequently asked

What is a Panel Filter Cartridge?

A Panel Filter Cartridge is a framed filtration element designed to remove airborne particles and protect downstream equipment or processes.

What is the difference between a Panel Filter and a Pleated Filter Cartridge?

A panel filter uses a flat/framed panel-style construction, while a pleated cartridge generally uses folded media in a cartridge geometry. The appropriate choice depends on the equipment, available space, airflow and filtration requirement.

Can the Panel Filter Cartridge be customized?

Yes. Dimensions, frame material, media, sealing and support configuration can be adapted to the application.

Can you make a replacement based on an existing filter?

Yes. Existing dimensions, drawings, photographs or a physical sample can be used to determine the required configuration.

MEDIA FOR THIS CARTRIDGE

Polyester Spunbond
Needle-Punched Media
Cellulose Filter Media

OTHER ELEMENTS

Air & Dust Collection
Industrial Air Filtration
Custom Filter Solutions

SOLUTIONS

Air & Dust Collection
Industrial Air Filtration
Custom Filter Solutions

Packing and logistics

Criterion	Typical Approach	Result
Frame Protection	Protective packaging	Reduces handling damage
Media Protection	Secure internal packing	Maintains media condition
Identification	Product / batch identification	Easier tracking
Packaging	Size-specific packaging	Suitable for shipment
Handling	Protected panel stacking	Helps prevent deformation
Dispatch	Coordinated delivery	Reliable logistics

Inside the workshop

Looking for a Sintered Filter for Fine Powder Collection?

Send us your equipment dimensions, installation interface, operating temperature and dust information. FARRLEEY Filtration can evaluate the suitable TANNSON® panel size, surface configuration and filter construction for your application.
